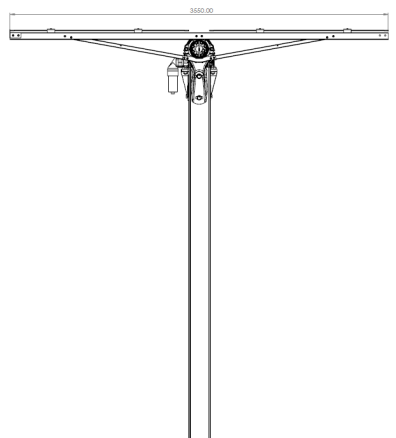

Dual (vertical) panel tracker
Key Factors:

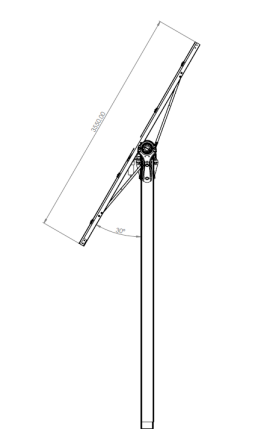

1, Tracking angle: +/-60°
2, Max wind load: 45m/s(144KM/Hour)
3, Anti-corrosion (C4)
4, 44 tracker/MW
5, Backward tracking, avoid the shadows

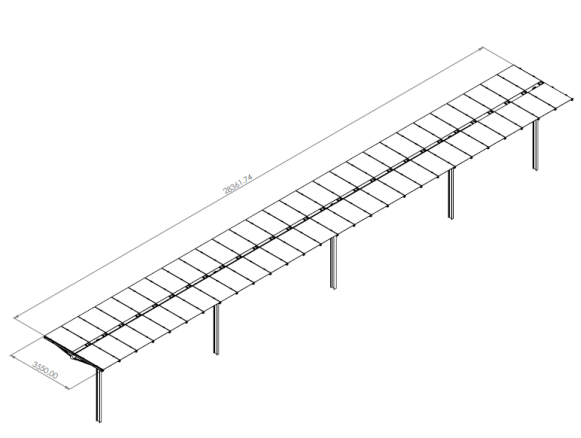

6, Size: Length 28m, Wideth 4.2m, Height >1.8m(customized)
7, Adopt to Frame module, Glass-Glass module, Bifacial module.
Two-Row Tracker Electrical Design
-Tracker Level Electrical Design
Length：28m
Width：3.9m
56 modules/tracker
28 modules/string
2 strings/tracker

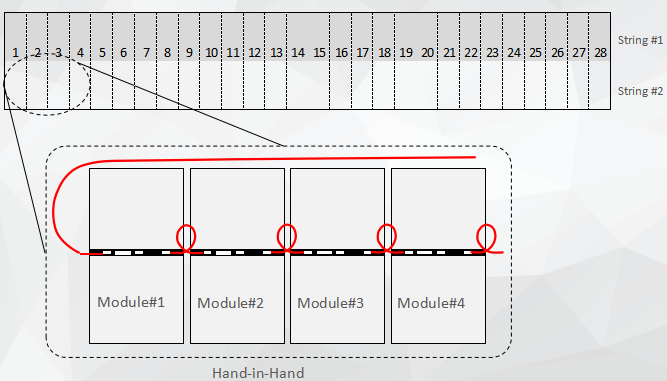

String way：Hand-in-Hand module connection way，using a long “Pull-Back” cable in the end

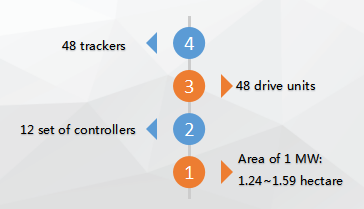

- MW Configuration

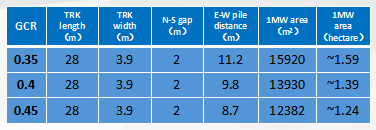

Area of 1MW under different GCR（Excluding road and MVT）
