Key Factors:

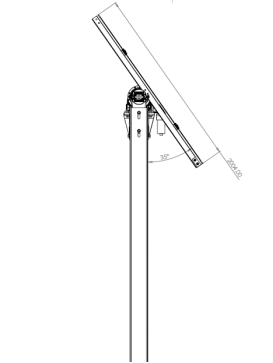

          1, Tracking angle: +/-55°
          2, Max wind load: 45m/s(144KM/Hour)
          3, Anti-corrosion (C4)
          4, 44 tracker/MW
          5, Backward tracking, avoid the shadows

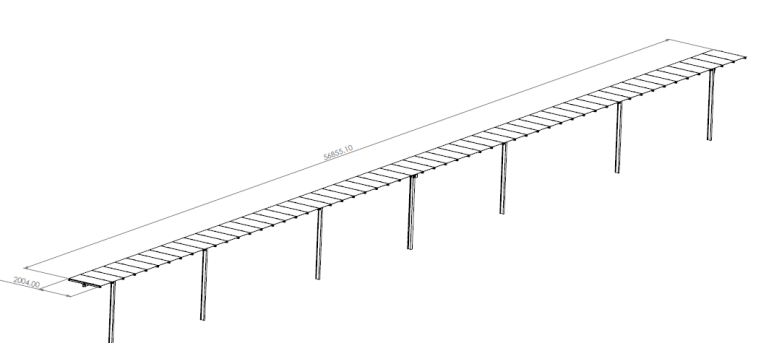

          6, Size: Length 56m, Wideth 2m, Height >1m(customized)
          7, Adopt to Frame module, Glass-Glass module, Bifacial module.

One-Row Tracker Electrical Design


-Tracker Level Electrical Design

 Length：56m

 Width：1.96m

56 modules/tracker

28 modules/string

2 strings/tracker

String way：Hand-in-Hand module connection way，using a long “Pull-Back” cable in the end

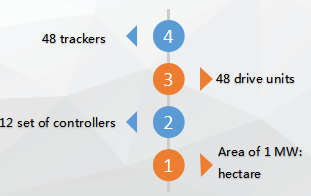

- MW Configuration

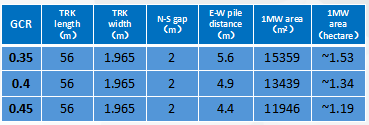

Area of 1MW under different GCR（Excluding road and MVT）
